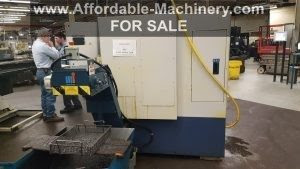

Mori SeikiCNC Lathe Turning Center
- Year: 1999
- Model: SL-250BSMC/500
- Run Time: 14,550 hours
- Swing Over Bed / Cross Slide: 26.8″/ 22.6″
- Maximum Turning Diameter: 15.3″
- Standard Turning Diameter: 8.27”
- Distance Between Centers: 22.6″
- Max Turning Length: 19.10″
- Spindle Speeds: 35-3500
- Spindle Motor: 20/15
- Spindle Nose: A2-8
- Min. Spindle Index Angle: .001”
- Spindle Bore: 3.3″
- Max Bar Size: 2.9″
- Turret Stations: 10
- Turret Index Time: 0.2 Sec
- Square Tool Capacity: 1″
- Boring Bar Capacity: 2.0″
- Axis Travel:
- Z- Axis: 19.5″
- X- Axis: 6.3″
- Live Milling: 10 Positions
- Live Milling RPM: 3,000RPM
- Live Milling HP: 8/5.8 HP
- Rapid Travels: X and Z : 708/944.9 IPM
- Tail Stock Taper: MT # 5
- Tail Stock Travel: 4.7”
- Machine Dimensions: 93.7″ x 69.3″ x 74.2″ high
- Power: 220v/3ph
Equipped With:
- MORI SEIKI-Fanuc MSC-501 (Fanuc 18i) CNC CONTROL
- RS-232C PORT INTERFACE FOR DNC OPERATION
- IN-MACHINE TOOL PRE-SETTER
- TAILSTOCK
- 20 HP SPINDLE
- STANDARD COOLANT SYSTEM WITH TANK & PUMP
- CHIP CONVEYOR
Note:
- Does Not Include Bar Feeder
- Machine was recently removed from service on 2.10.17 and runs good
